AIRTACUK

ASG / KWA CZ P-09 to MP5 HPA ADAPTER

Sale price$65.00
Quantity:
Pickup available at Open Mon-Thu 4-6pm Usually ready in 2-4 days

ASG / KWA CZ P-09 to MP5 HPA ADAPTER

Open Mon-Thu 4-6pm

Pickup available, usually ready in 2-4 days

Unit 27/28
Ballymena Business Centre
Galgorm BT42 1FL
United Kingdom

07473913372
Only 1 unit left



These adapters are made to fit your existing GBB magazines, and include a Single Stack adapter, as well as a lanyard loop delete, allowing the adapter to sit flush with the base of the pistol.

Full support and lifetime warranty is offered for these products.

HOME INSTALLATION

Lanyard Delete

Punch out the grip panel pin with your finger over the lanyard loop. When the pin is out, carefully remove the lanyard loop (theres a spring), and place our lanyard delete into the hole. Re insert the pin. JOB DONE!

HPA ADAPTER

Installation is simple. Remove your gas base by knocking out the two large pins at the bottom of the mag (they can be knocked out from either side). Knock out the small pin in the BB channel of the magazine. Remove the spring and follower, and insert our single stack adapter into the magazine.

Place the O ring from the gas base plate of the CZ P-09 mag onto our adapter, and insert into magazine. Using the clamp to apply compression, line up the pin holes and fully re-insert one pin at a time. You’re then good to go!

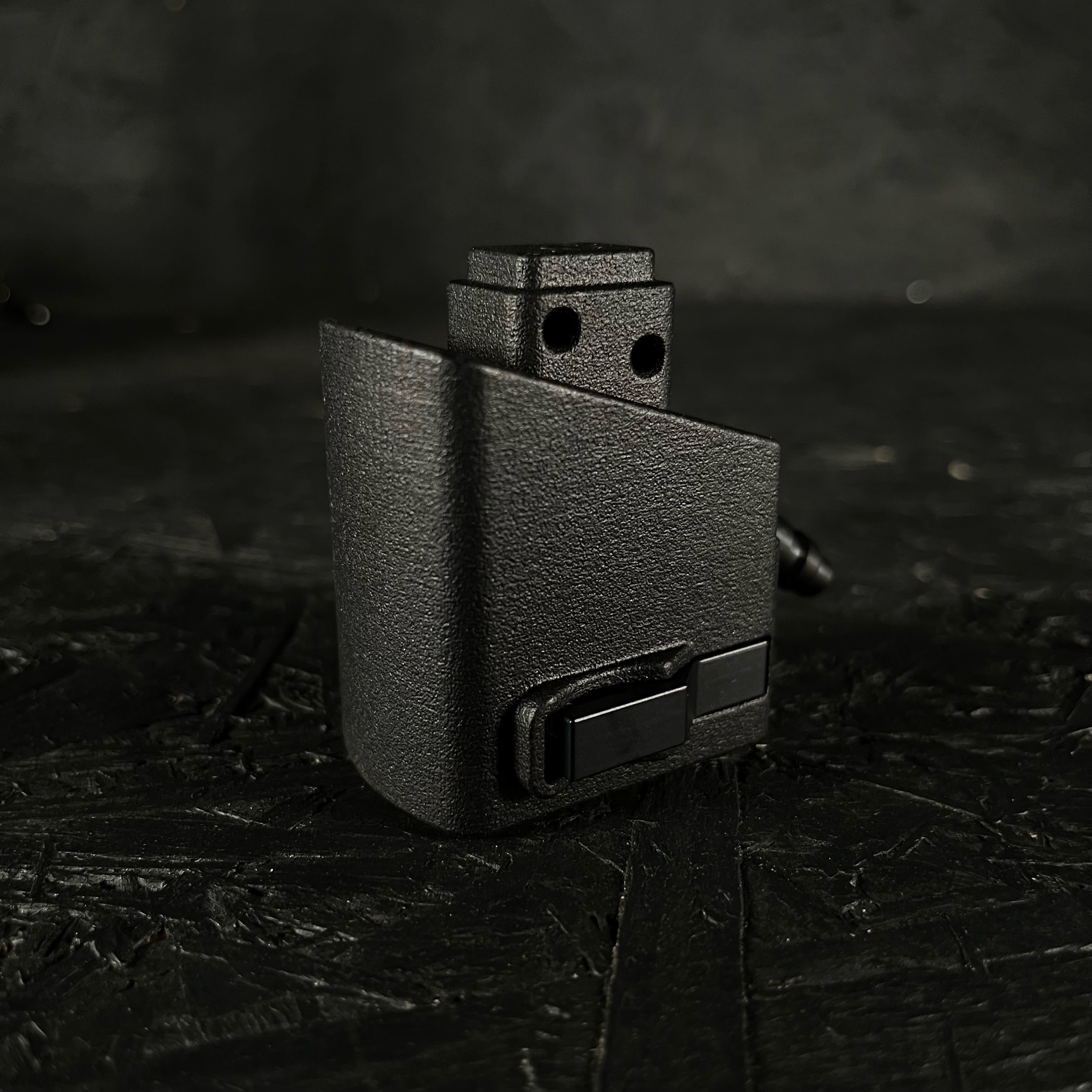

MP5 HPA Adapter Info

  • Replaceable Feed Tube
  • Replaceable Feed Tube
  • Compatible with all CYMA MP5 Mid Caps (65 round metal, 120/130 round metal, Straight, Novritsch Straight, Bullet Window). Available Here
  • Straight Magazines will follow grip of pistol/SMG
  • Small rear tabs can be filed down to accomodate out-of-spec magazines (shown in blue on image below)
  • BB Retention drops only 2 BBs when changing magazine
  • Magazine Insertion will be tight for first few insertions, this is to provide perfect fit

Newer MP5 adapters include changeable shims, which can be removed with the included hex key.

  • NO SHIM - CYMA 65RND (SHORT CURVED)
  • S1 SHIM - CYMA 110RND (STRAIGHT)
  • S2 SHIM - CYMA 130RND (PLASTIC CURVED WITH BULLET DETAIL/120 RND METAL CURVED
